New!

Height Adjustable Wall Mount with Frame Cover

(HAWM3)
$1,000.00 USD
Find a Dealer Contact Us

Why We Designed This

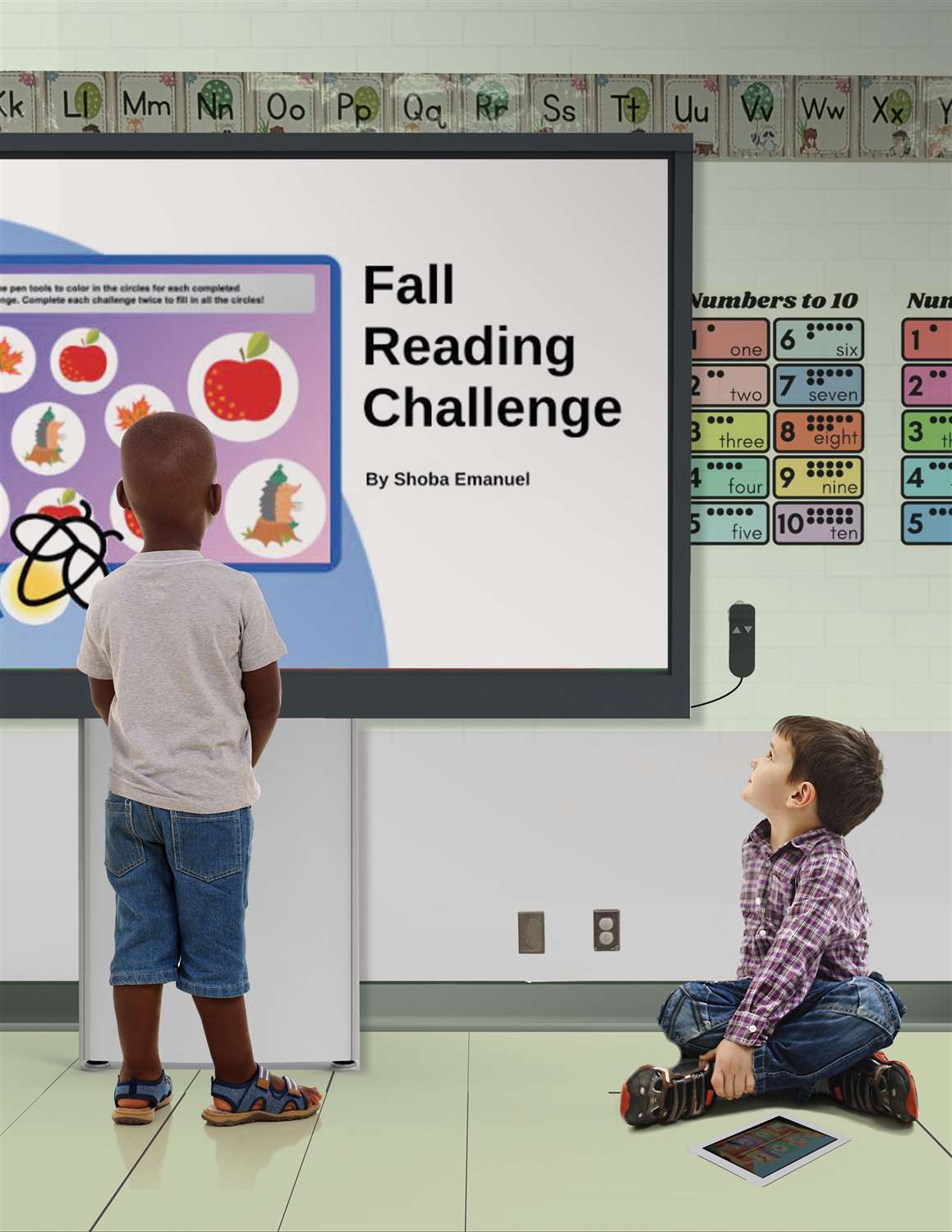

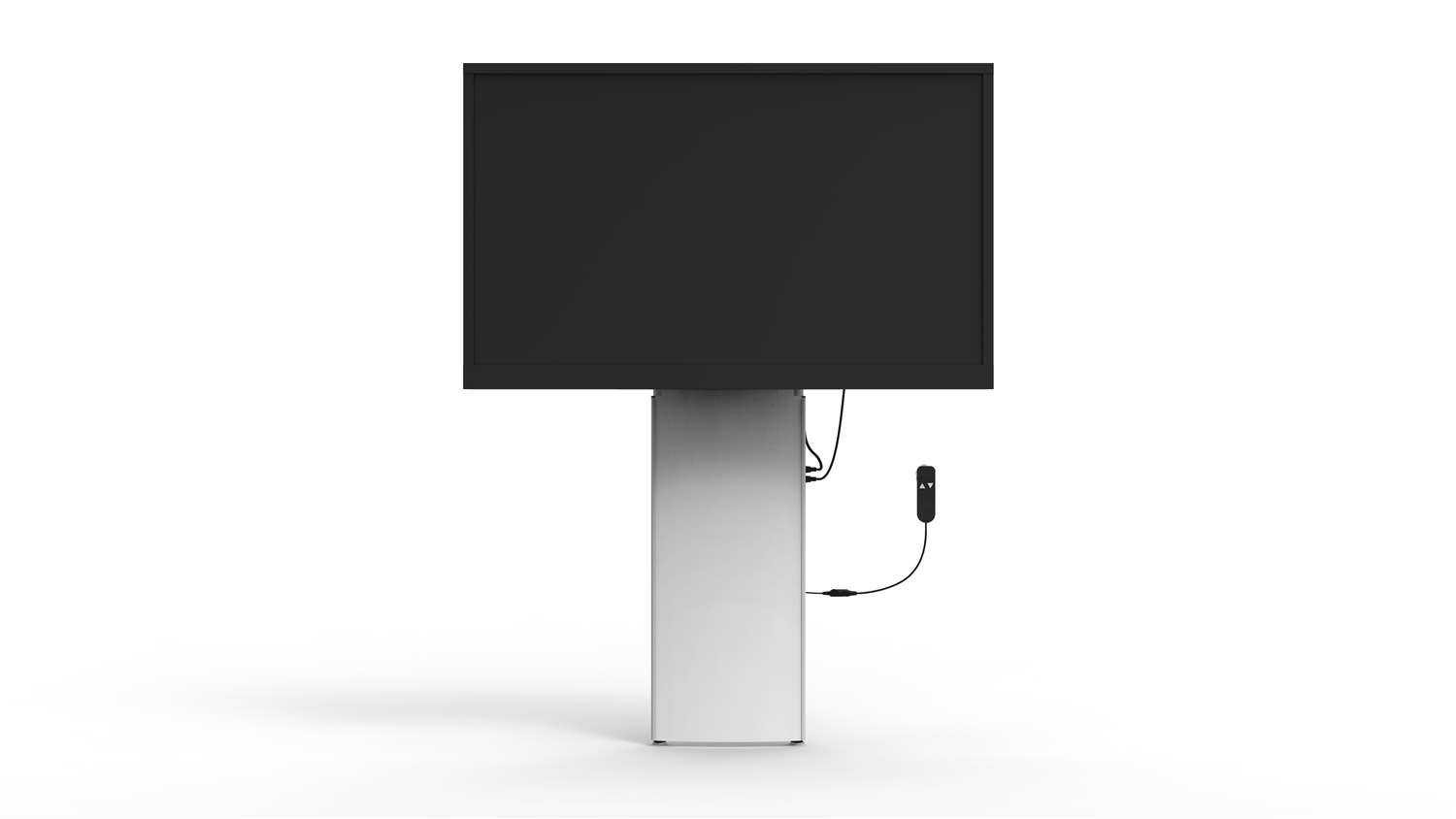

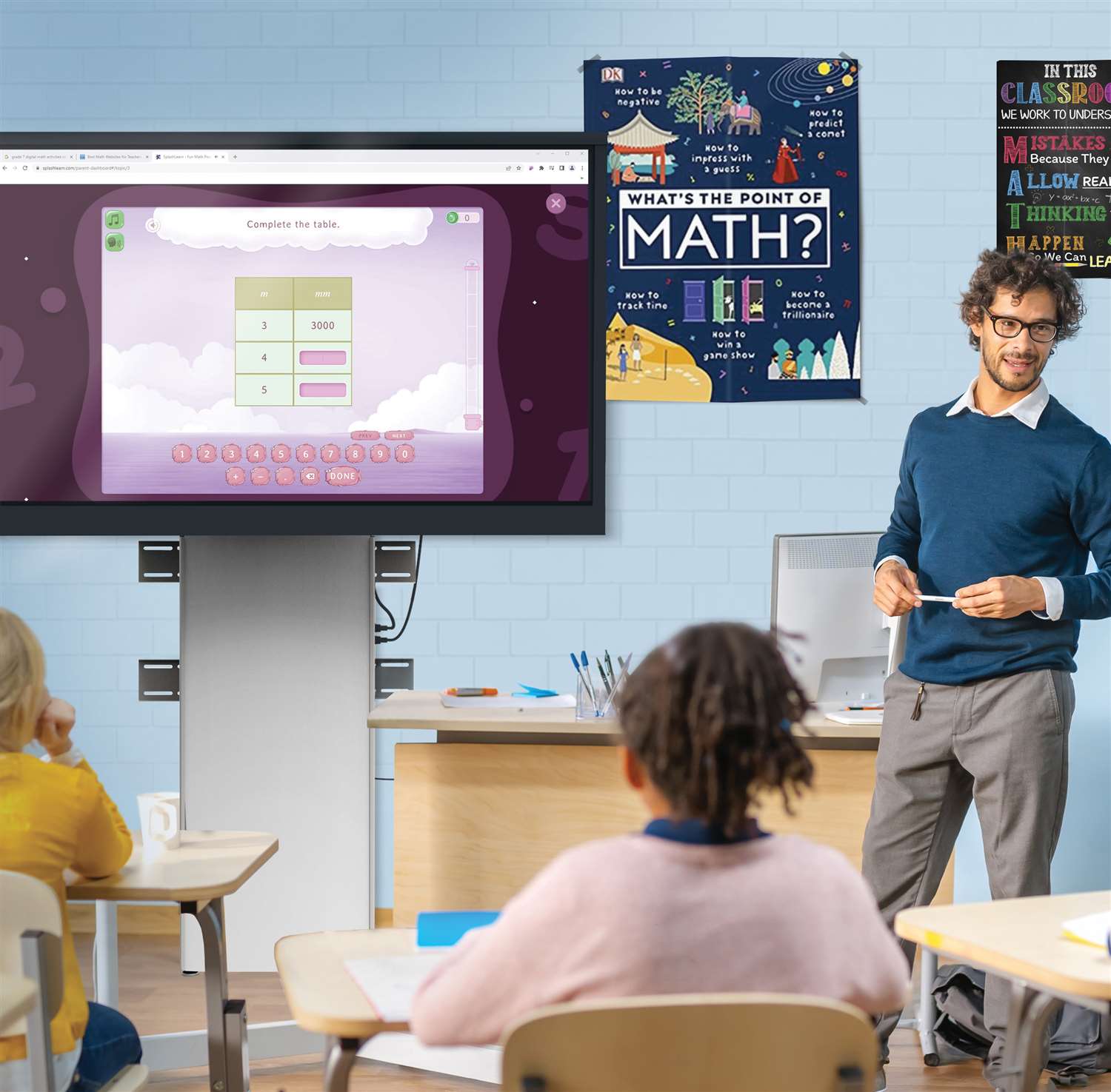

This height-adjustable wall-mounted flat panel is important for the classroom because it not only saves valuable classroom floor space but can also accommodate students with different physical abilities and needs. Its easy-to-use electric lift allows the flat panel height to be adjusted with a 17” range to accommodate students from different grade levels as classrooms change. Cords and support legs are concealed with a frame cover. There is a built-in clearance for mounting over marker ledges on whiteboards. This flexibility is also ideal in media and library spaces where many students participate in activities.

An optional Sound bar mount is also available to enhance and better project the audio.

This model is specifically for masonry walls. A separate stud mounting kit is required for wood stud walls (HAWM2-SMK). Both mounting models have floor supports.

Features

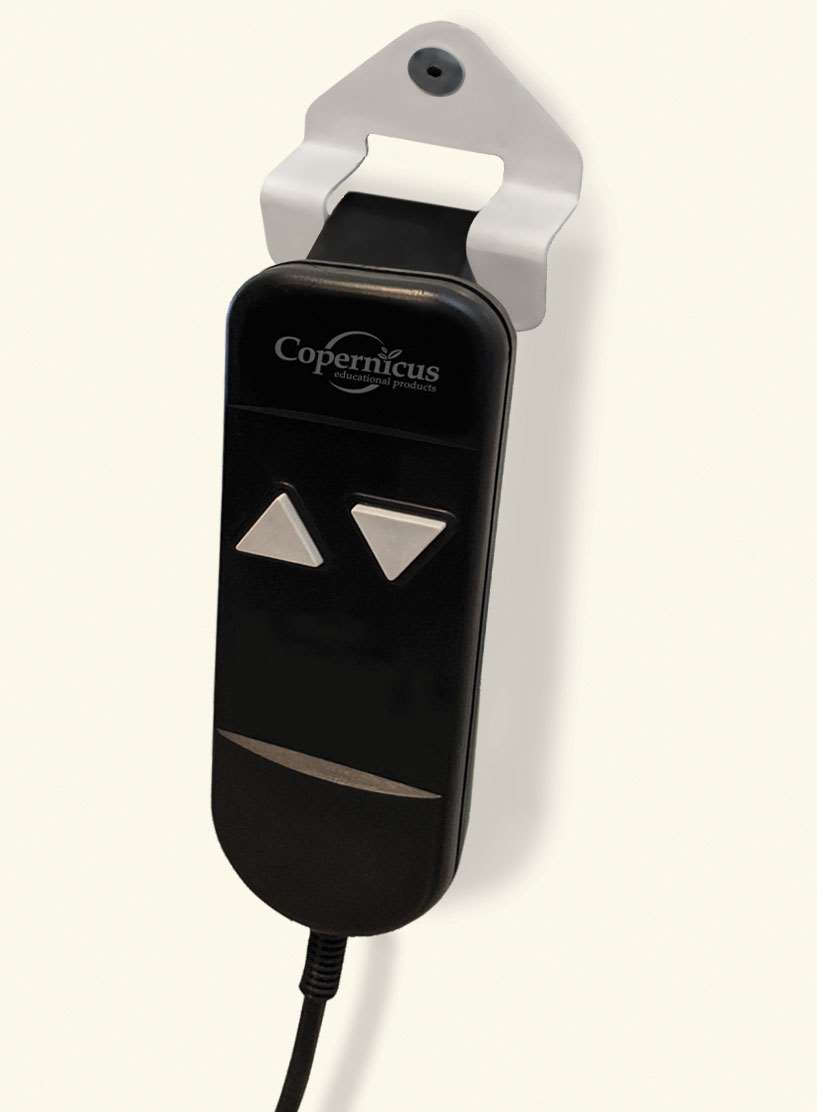

  • Electric lift function to adjust the flat panel height with a 17” range so the flat panel can be easily viewed by different grade levels (requires power)

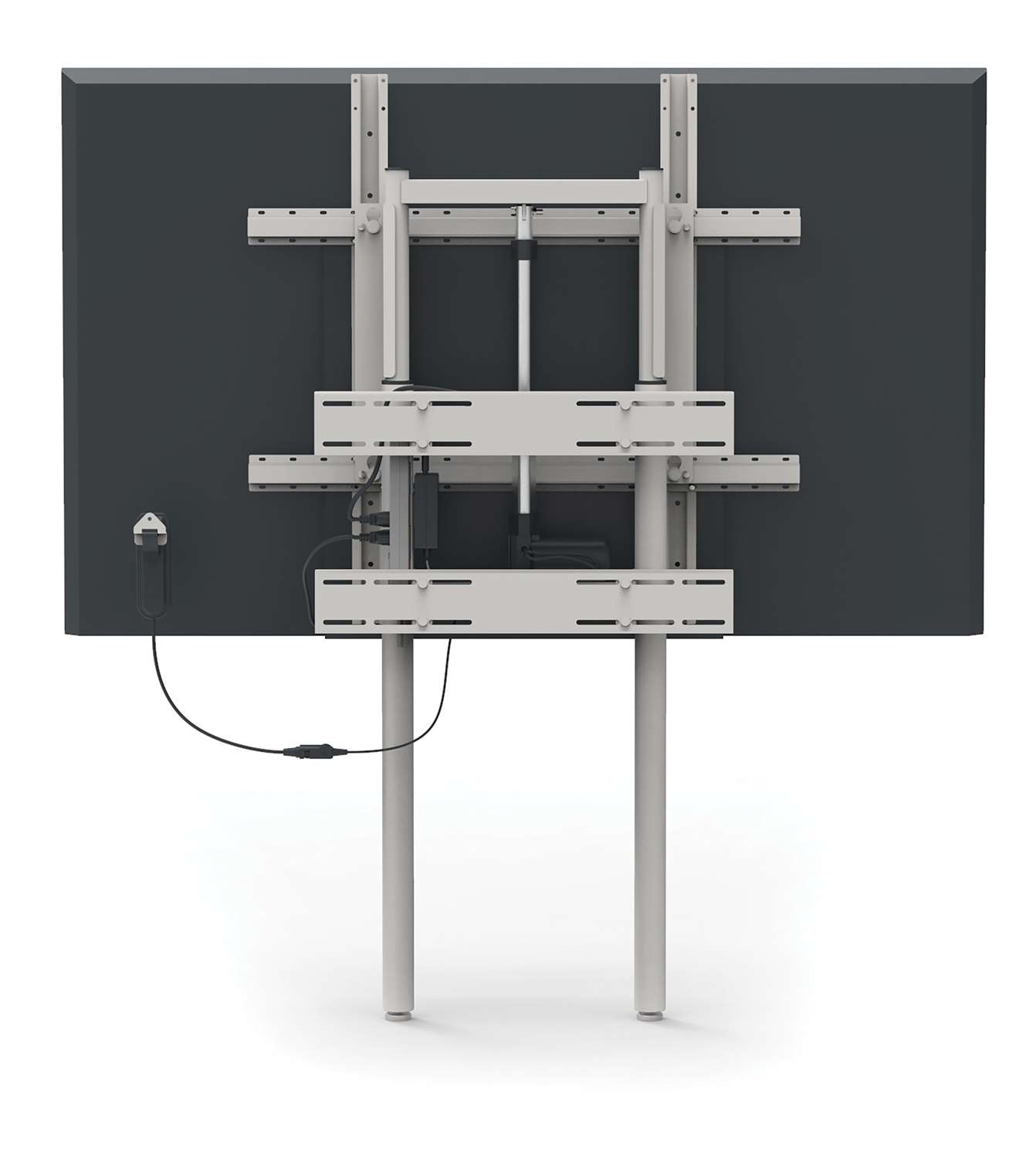

  • Remote mounting bracket
  • Built-in clearance for mounting over marker ledges

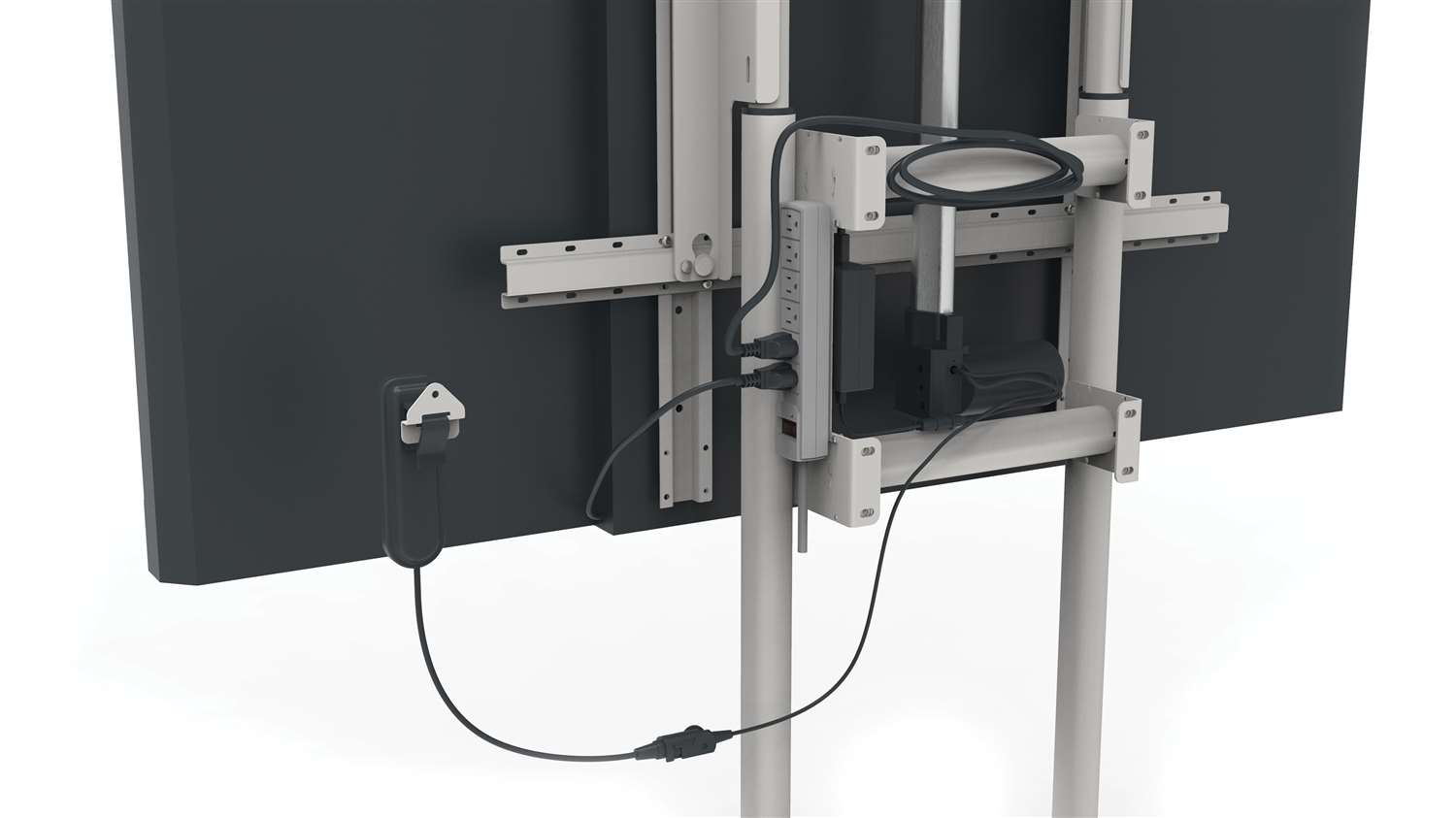

  • A 6-outlet power strip (UL listed)
  • Hook and loop ties for cable management
  • Supports up to 86” flat panels with a maximum weight of 250lbs
  • Includes a floor support kit

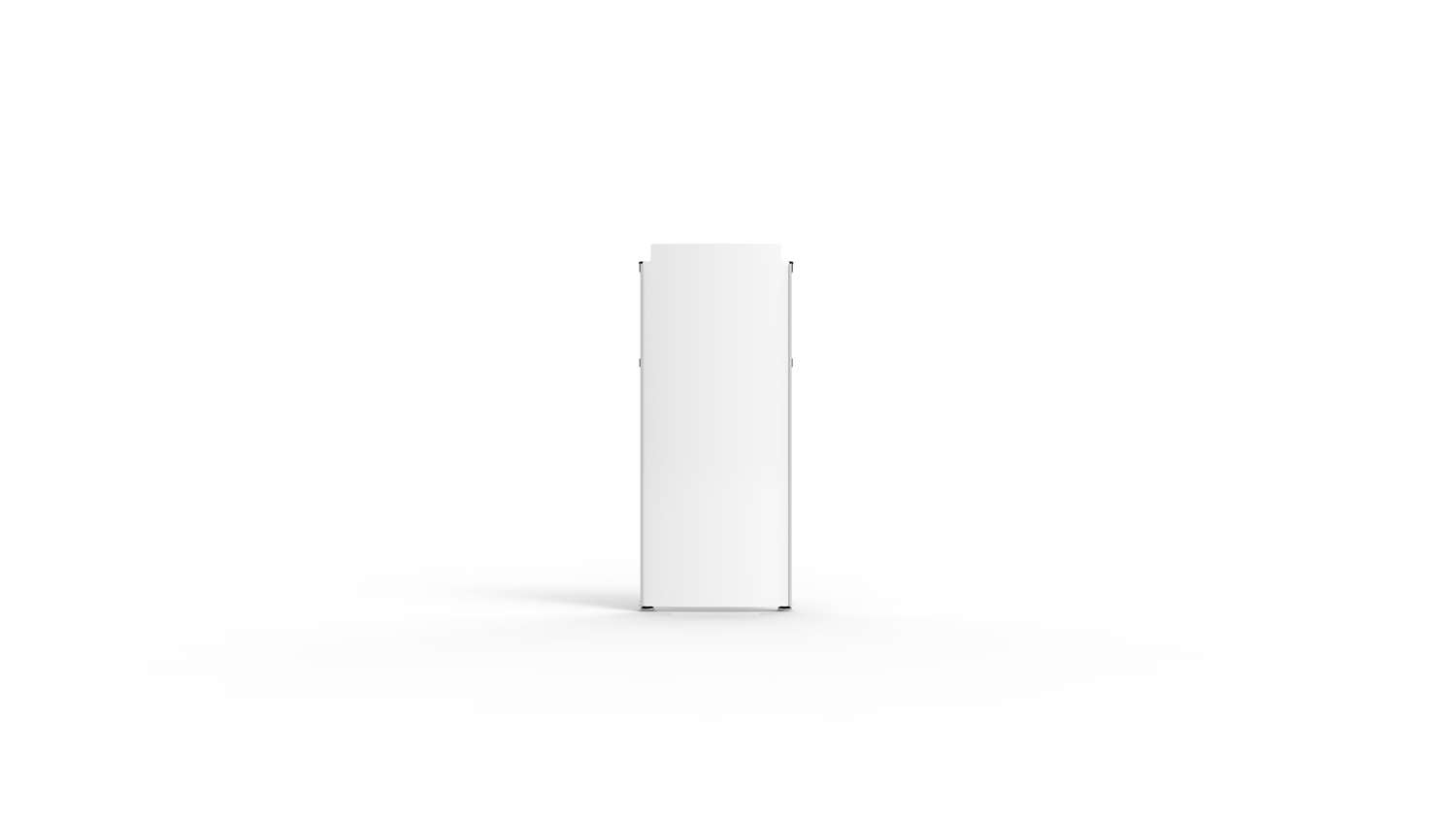

  • Frame Cover
  • Optional sound bar mount (IFP-ACS2) can be mounted above or below the flat panel
  • This model is specifically for masonry walls. A separate stud mounting kit is required for wood stud walls (HAWM2-SMK).

Design

  • Have a part that needs replacing? Keep your product in use longer, rather than sending your entire product to the landfill by using our Replacement Parts Program.
  • Finished with this product? Please follow the suggestions on our Product Lifecycle page.

Packaging

  • We are working on removing all plastic from our packaging. Check back in with us soon to see our progress.
  • Dimensions (without flat panel): 78 1/2” (199 cm) H x 35 ¼” (90 cm) W x 8” (20 cm) D
  • UPC: 664678003543
  • TAA Compliant
  • Maximum Flat Panel Dimensions:
    • Supports 55”- 86” flat panels with a maximum weight of 250lbs
    • Supported VESA: 300 x 200 (min) 800 x 700 (max)
  • Lifetime warranty
  • 5 year warranty on electric lift
